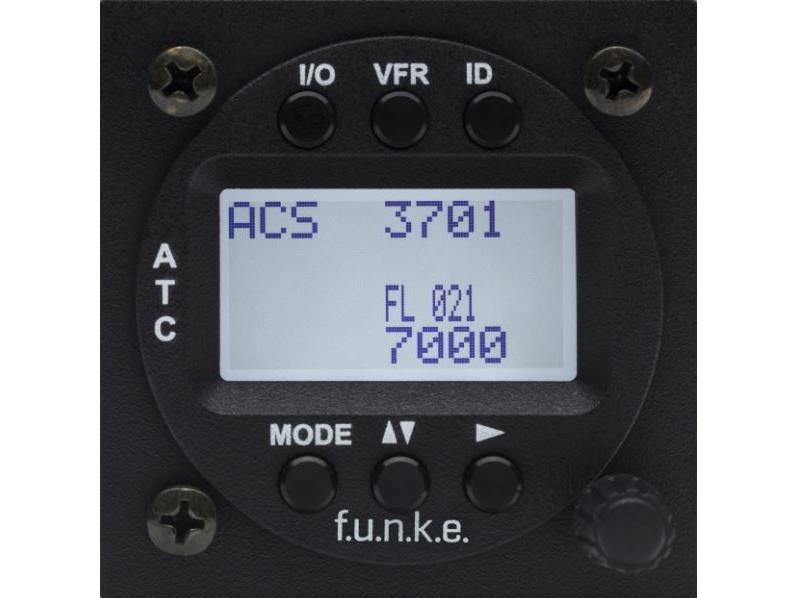

The ZTRT 800H LCD is a new development of the well known TRT 800 series transponder that can be seen easily from almost any angle. As with the earlier models the alticoder is built in and installation is straightforward.
It fits a standard 57mm aviation housing and measures approx 65 x 65 x 170 mm and produces 125 watts at the antenna.
EASA approval number is: EASA.21O.045 and a Form 1 and A/C address connector is part of the standard delivery.
If the optional TRT 800EMSS address adapter is fitted the RS 232 interface allows connection to a GPS receiver to support ADS-B Out functionality (Broadcasting of own position for processing by other aircraft for collision avoidance.)
FEATURES
– Class 1 Level 2es
– Integral Alticoder (25ft increments)
– Pre-wired connector included
– EASA Approval number EASA.21O.045
– ADS-B ready
